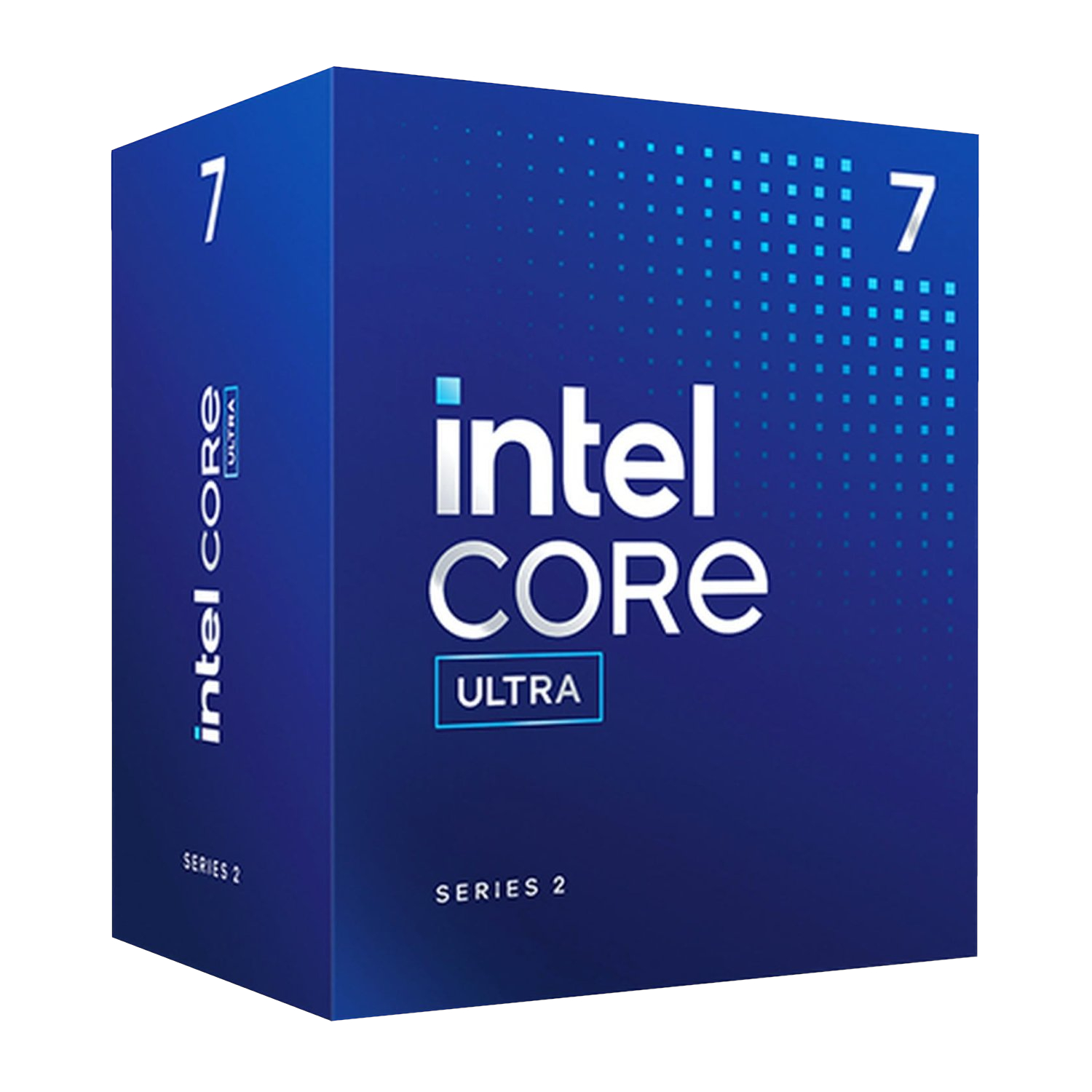

Intel Core Ultra 7 265 – 20-Core (8+12) , up to 5.3Ghz , LGA1851 CPU

CPU Specifications
Total Cores: 20
# of Performance-cores: 8
# of Efficient-cores: 12
# of Low Power Efficient-cores: 0
Total Threads: 20
Max Turbo Frequency: 5.3 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.3 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 2.4 GHz
Efficient-core Base Frequency: 1.8 GHz
Cache: 30 MB Intel® Smart Cache
Total L2 Cache: 36 MB
Processor Base Power: 65 W
Maximum Turbo Power: 182 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography:TSMC N3B

Supplemental Information
Marketing Status: Launched
Launch Date: Q1’25
Embedded Options Available: Yes
Use Conditions: PC/Client/Tablet, Workstation

Memory Specifications
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported ‡: Yes

GPU Specifications
GPU Name‡: Intel® Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.95 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores: 4
Max Resolution (HDMI)‡: 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡: 3840 x 2400 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
H.264 Hardware Encode/Decode: Yes
H.265 (HEVC) Hardware Encode/Decode: Yes
AV1 Encode/Decode: Yes
Intel® Quick Sync Video: Yes
# of Displays Supported ‡: 4
Device ID: 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications
NPU Name‡: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel® Thunderbolt™ 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24

Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C
Package Size: 45 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.5
Intel® Thread Director: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 ‡: Yes
Intel® Turbo Boost Technology ‡: 2.0
Intel® Hyper-Threading Technology ‡: No
Intel® 64 ‡: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes

Security & Reliability
Intel vPro® Eligibility ‡: Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT): Yes
Intel® Active Management Technology (AMT) ‡: Yes
Intel® Standard Manageability (ISM) ‡: Yes
Intel® Remote Platform Erase (RPE) ‡: Yes
Intel® One-Click Recovery ‡: Yes
Intel® Secure Key: Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® Total Memory Encryption – Multi Key: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology ‡: Yes
Execute Disable Bit ‡: Yes
Intel® OS Guard: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes
Intel® Virtualization Technology (VT-x) ‡: Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
